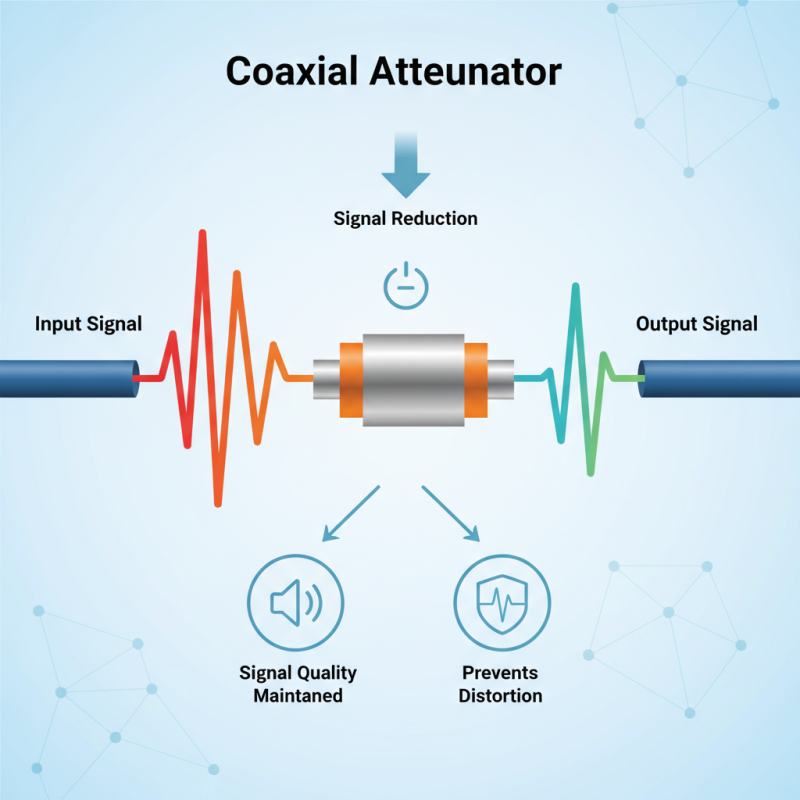

What is a Coaxial Attenuator and How Does it Work?
In the realm of electronic communications, understanding the function of a Coaxial Attenuator is vital. Smith Technology's leading expert, Dr. Emily Wang, notes, "A Coaxial Attenuator is essential for controlling signal strength." This device plays a critical role in various applications, from broadcasting to telecommunications.
By reducing signal power, it maintains quality and prevents distortion. Often overlooked, the Coaxial Attenuator aids in achieving optimal performance in complex systems. For instance, when calibrating equipment, attenuation helps adjust to required levels.
Yet, the industry sometimes misuses these components. Many fail to grasp their significance in safeguarding equipment. This negligence can lead to poor outcomes and unexpected failures. A Coaxial Attenuator, when used correctly, enhances efficiency. However, there is still much to learn about its proper application.
What is a Coaxial Attenuator?
A coaxial attenuator is a passive device used in RF and microwave applications. It reduces signal strength without distorting the signal quality. The main purpose is to control the power level across a transmission line. This helps to match different components in a circuit. Many technicians rely on coaxial attenuators for signal testing and calibration.
Coaxial attenuators come in various types, including fixed and variable models. Fixed attenuators provide a set level of attenuation, while variable ones allow fine-tuning. Each model has specific characteristics. Understanding these is crucial for effective application. Choose the type that fits your specific need.
Tip:
Always check the frequency range of the attenuator. Using one outside its range can lead to signal loss.
Installation requires care. Ensure that all connections are tight. Loose connections introduce unwanted noise. Additionally, keeping the attenuator clean is essential for optimal performance. Dust or moisture can degrade functionality.
Tip:
Test your setup after installation. This step helps identify any issues upfront. Adjustments can be made easily if needed. Remember, even small changes can have significant effects.
The Function and Importance of Coaxial Attenuators
Coaxial attenuators play a crucial role in signal management within various communication systems. They reduce signal strength to prevent saturation or distortion. This is vital in applications ranging from telecommunications to television broadcasting. A study by MarketsandMarkets indicates that the global coaxial cable market is expected to reach $17.6 billion by 2025. This growth highlights the increasing reliance on coaxial technology.
The function of coaxial attenuators hinges on their ability to control signal amplitude. They help maintain optimal performance by minimizing interference in signals. According to a report by Research and Markets, improper signal levels can lead to a 30% increase in error rates in data transmission. This emphasizes the importance of using attenuators to enhance reliability in communication systems.
However, not all installations are perfect. Some coaxial attenuators may not be suitable for all environments. Inadequate specifications can lead to inefficiencies and signal loss. Engineers must choose the right type based on specific requirements. Often, the cost-saving approach compromises quality. Careful consideration is essential for achieving the desired performance levels.
What is a Coaxial Attenuator and How Does it Work?
| Parameter | Description | Typical Range |
| Attenuation | The reduction in signal power resulting from the attenuator. | 0 to 30 dB |
| Frequency Range | The range of frequencies over which the attenuator can operate effectively. | DC to 18 GHz |
| Impedance | The resistance the attenuator presents to the signal, typically to match cable impedance. | 50 ohms or 75 ohms |
| Power Rating | The maximum amount of power the attenuator can dissipate without damage. | 1 W to 100 W |
| Connectors | The type of connectors available on the attenuator for interfacing with other components. | N-Type, BNC, SMA |
How Coaxial Attenuators Work: Key Principles
Coaxial attenuators play a vital role in managing signal levels in communication systems. They reduce signal strength without distorting the transmission. This function is critical when matching different components that require varying signal amplitudes.
The main principle behind coaxial attenuators involves resistive materials. These materials absorb some of the signal energy, preventing reflection. As the signal passes through the attenuator, it loses some of its power. This process can be compared to a dimmer switch controlling light intensity. The right attenuator ensures signals are strong enough for receivers but not so strong that they cause damage.
However, selecting the appropriate attenuator isn't always straightforward. Users may face challenges with impedance matching and power ratings. A decision may result in underperformance or unintentional interference. It's essential to analyze system requirements in detail. Each installation may need adjustments and considerations for optimal performance.
Types of Coaxial Attenuators and Their Applications
Coaxial attenuators come in various types, each serving specific needs. Fixed attenuators provide a stable reduction of signal strength. They work by dissipating energy as heat. These are ideal for testing applications. Adjustable attenuators, however, allow users to modify the attenuation level. This flexibility suits environments where signal strength varies often.
Another type includes programmable attenuators. These can be controlled electronically. Their precision is essential in automated systems. Each type is valuable depending on its application. For instance, fixed types are easy to integrate. Yet, adjustable types may require more setup time. The complexity can sometimes deter less experienced users. Balancing between ease of use and functionality often sparks debate among professionals.
Understanding the right type for your project is crucial. Each option has its pros and cons. Choose wisely, or you might face unexpected challenges down the line. Testing and experimentation will often lead to the best outcomes.
Choosing the Right Coaxial Attenuator for Your Needs
When choosing the right coaxial attenuator, several factors come into play. It’s crucial to understand your system's specific needs. In 2021, industry reports indicated that optimal attenuation improves signal quality by up to 30%. However, selecting the wrong attenuator leads to inefficiencies.
The frequency range is vital. Most attenuators operate effectively between 1 MHz and 18 GHz. Know your application before making a decision. Impedance also matters. Mismatched impedance can cause reflections, harming performance metrics. It's disappointing to witness systems fail due to avoidable mismatches.
Pay attention to power ratings. Many coaxial attenuators handle around 1W, but some can handle more. Yet, the temptation to exceed ratings can create overheating issues. Users often underestimate this. Noise factor specifications are important as well. Higher noise indicates poor signal quality. This is an area often overlooked, leading to unsatisfactory outcomes. Always aim for the best data, and remember—compromise can be costly.
